Product Details

MS Tubes & MS Lancing Pipes

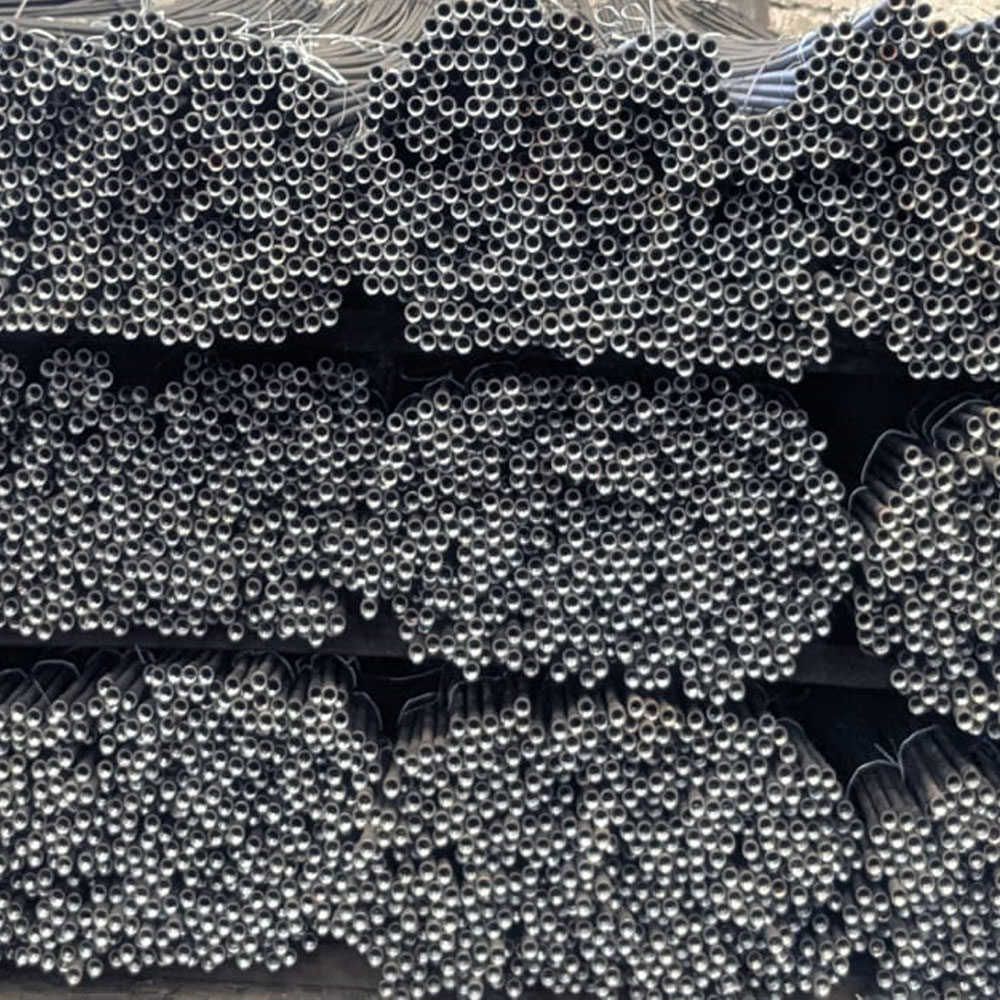

MS Lancing Tubes

MS (Mild Steel) lancing tubes are used in the steel industry, especially for injecting gases like oxygen into molten metal. Usually constructed of steel, they are intended to endure high pressures and temperatures. These tubes are essential for a number of operations, including the removal of carbon from molten metal, steelmaking, and refinement.

  • IS 10577:1982 Specification for MS Lancing Pipes (8mm NB) - MS Lancing Tube used in Blast Furnace / Oxygen Pipes



Ready Stock

NB Inch Thickness (mm) Length (m)
8 1/4 1.2-2.5 3-12
15 1/2 1.2-3.5 3-7
20 3/4 1.2-3.5 3-7
25 1 1.2-3.5 3-7
32 1.25 1.2-3.5 3-7
40 1.5 1.2-3.5 3-7
48 2 1.2-3.5 3-7



Other than these sizes, we also supply lancing tubes of 4NB,6NB and 12NB.

MS Tubes Manufacturing:

The manufacturing process of MS Lancing Tubes employs a series of operations in which the Flat Rolling Steel, Hot Rolled Strips, or Hot Rolled Coils are cold-formed or shaped into tubular form. Welding is implicated by the application of heat and pressure. The welding heat is generated by resistance to the flow of an electric current, which may be introduced through electrodes or by induction. These welded tubular products are made in different sizes as desired, by fitting suitable dye sets.


Ready Stock

  •  IS 1239: Part 1:2004 Steel Pipes (15mm to 100mm NB) - LIGHT/MEDIUM/HEAVY - Fabrication Pipe

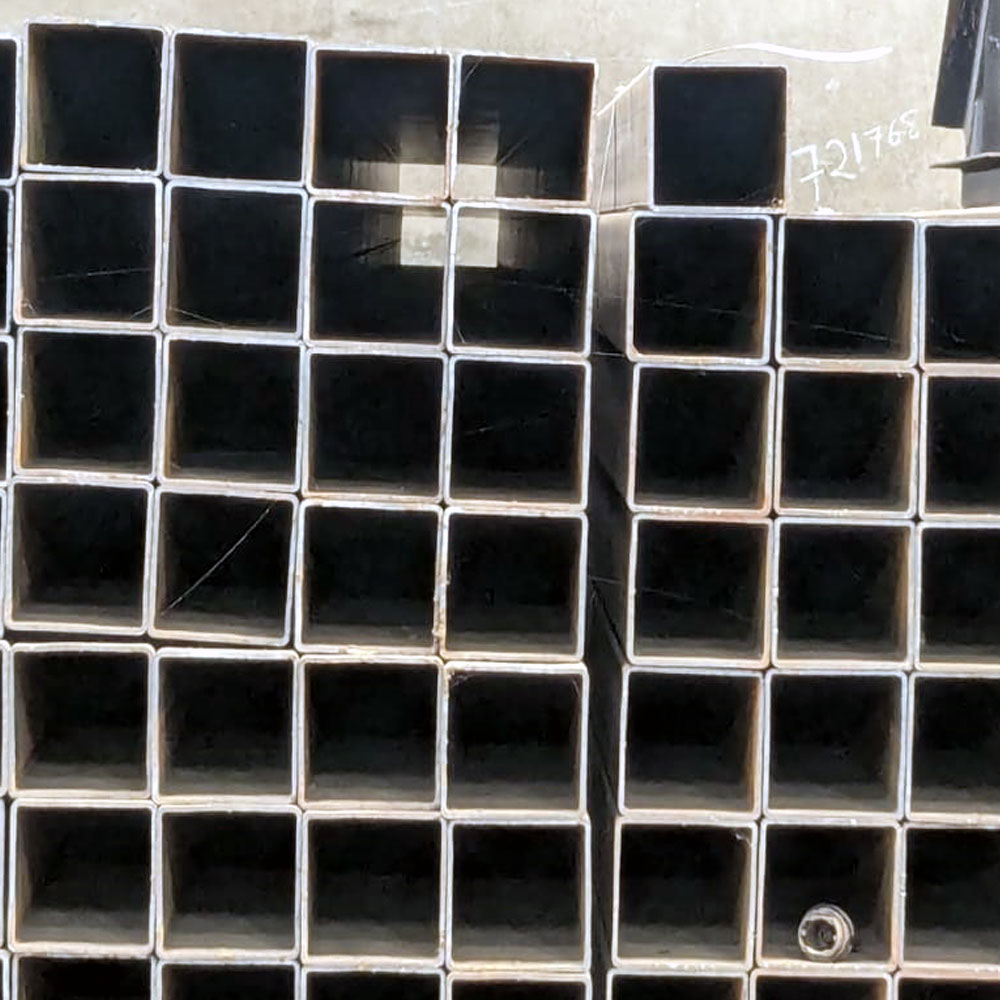

  •  IS 4923:2017 Hollow Steel Sections for Structural Use Specification (Square 25X25X2.0 to 72X72X4.8 mm)
  •  IS 4923:2017 Hollow Steel Sections for Structural Use Specification (Rectangular 50X25X2.9 to 96X48X4.8 mm)
  •  IS 1161:2014 Steel Tubes for Structural Purposes Specification (15mm to 100mm NB)



Besides these we also manufacture MS Tubes of different sizes as per customer requirements.



For more detailed information regarding the ready stock available at our premises kindly refer to the chart below:

ROUND TUBES SQUARE & RECTANGULAR TUBES
Dia/Size
NB		 OD
in MM		 Range Thick
in MM		 Kg/6mtr Dia/Size
NB		 OD
in MM		 Range Thick
in MM		 Kg/6mtr
1/2" 15mm
BUNDLE SIZE 200
PIECE		 21 Lig 1.2 3.6 15x15 BUNDLE
SIZE 200 PIECE
21 Gen 1.4 4.2
21 Gen 1.6 4.7
21 Med 1.8 5.1
21 Med 2.0 5.8
3/4" 19.05 mm
BUNDLE SIZE 100
PIECE		 27 Lig 1.2 4.6 19x19 BUNDLE
SIZE 100 PIECE		 27 Lig 1.2 4.6
27 Lig 1.4 5.3 27 Lig 1.4 5.3
27 Gen 1.6 6.0 27 Gen 1.6 6.0
27 Med 1.8 6.7 27 Med 1.8 6.7
27 Med 2.0 7.4 27 Med 2.0 7.4
27 Med 2.2 8.2 27 Med 2.2 8.2
1.0" 25mm
BUNDLE SIZE 100
PIECE		 33 Lig 1.2 5.6 25x25 BUNDLE
SIZE 100 PIECE		 33 Lig 1.2 5.6
33 Lig 1.4 6.7 33 Lig 1.4 6.7
33 Lig 1.6 7.6 33 Lig 1.6 7.6
33 Gen 1.8 8.5 33 Gen 1.8 8.5
33 Gen 2.0 9.4 33 Gen 1.8 8.5
33 Med 2.2 10.2 33 Med 2.2 10.2
33 Med 2.5 11.5 33 Med 2.5 11.5
33 Med 2.8 12.8 33 Med 2.8 12.8
33 Hev 3.2 14.2 33 Hev 3.2 14.2
1.1/4" 32mm
BUNDLE SIZE 100
PIECE		 42 Lig 1.2 7.3 32x32 10x25 BUNDLE
SIZE 100 PIECE		 42 Lig 1.2 7.3
42 Gen 1.4 8.5 42 Gen 1.4 8.5
42 Gen 1.6 9.7 42 Gen 1.6 9.7
42 Gen 1.8 10.8 42 Gen 1.8 10.8
42 Gen 2.0 12.0 42 Gen 2.0 12.0
42 Med 2.5 14.8 42 Med 2.5 14.8
42 Med 2.8 16.5 42 Med 2.8 16.5
1.1/2" 40mm
BUNDLE SIZE 100
PIECE		 48 Gen 1.2 8.0 38x38 50x25
BUNDLE SIZE 100
PIECE		 48 Gen 1.2 8.0
48 Gen 1.4 9.8 48 Gen 1.4 9.8
48 Gen 1.6 11.0 48 Gen 1.6 11.0
48 Gen 1.8 12.5 48 Gen 1.8 12.5
48 Gen 2.0 13.8 48 Gen 2.0 13.8
48 Gen 2.2 15.0 48 Gen 2.2 15.0
48 Gen 2.5 17.0 48 Gen 2.5 17.0
48 Med 2.8 19.0 48 Med 2.8 19.0
48 Hev 3.2 21.0 48 Hev 3.2 21.0
2.0" 50mm
BUNDLE SIZE 60
PIECE		 60 Gen 1.4 11.5 48x48 60x40
75x25 BUNDLE
SIZE 60 PIECE		 60 Gen 1.4 11.5
60 Gen 1.6 14.0 60 Gen 1.6 14.0
60 Gen 1.8 15.7 60 Gen 1.8 15.7
60 Gen 2.0 17.4 60 Gen 2.0 17.4
60 Med 2.2 19.0 60 Med 2.2 19.0
60 Med 2.5 21.0 60 Med 2.5 21.0
60 Med 2.8 24.0 60 Med 2.8 24.0
60 Hev 3.2 27.0 60 Hev 3.2 27.0
2.5" 65mm
BUNDLE SIZE 40
PIECE		 76 Gen 1.6 17.8 60x60 80x40
BUNDLE SIZE 40
PIECE		 76 Gen 1.6 17.8
76 Gen 1.8 20.0 76 Gen 1.8 20.0
76 Gen 2.0 22.0 76 Gen 2.0 22.0
76 Gen 2.2 24.0 76 Gen 2.2 24.0
76 Gen 2.5 27.4 76 Gen 2.5 27.4
76 Gen 2.8 30.5 76 Gen 2.8 30.5
76 Gen 3.2 32.4 76 Gen 3.2 32.4
3.0" 72mm
BUNDLE SIZE 30
PIECE		 86 Gen 2.0 26.0 72x72 96x48
BUNDLE SIZE 30
PIECE		 86 Gen 2.0 26.0
86 Gen 2.2 28.5 86 Gen 2.2 28.5
86 Gen 2.5 32.3 86 Gen 2.5 32.3
86 Gen 2.8 36.0 86 Gen 2.8 36.0
4.0" 100mm
BUNDLE SIZE 20
PIECE		 114.3 Gen 2.0 33.5 91x91 BUNDLE
SIZE 20 PIECE		 114.3 Gen 2.0 33.5
114.3 Gen 2.5 41.7 114.3 Gen 2.5 41.7
114.3 Gen 2.8 46.5 114.3 Gen 2.8 46.5
